GCSE Maths Algebra Inequalities

Inequalities On A Number Line

Inequalities On A Number Line

Here we will learn about inequalities on a number line including how to represent inequalities on a number line, interpret inequalities from a number line and list integer values from an inequality.

There are also inequalities on a number line worksheets based on Edexcel, AQA and OCR exam questions, along with further guidance on where to go next if you’re still stuck.

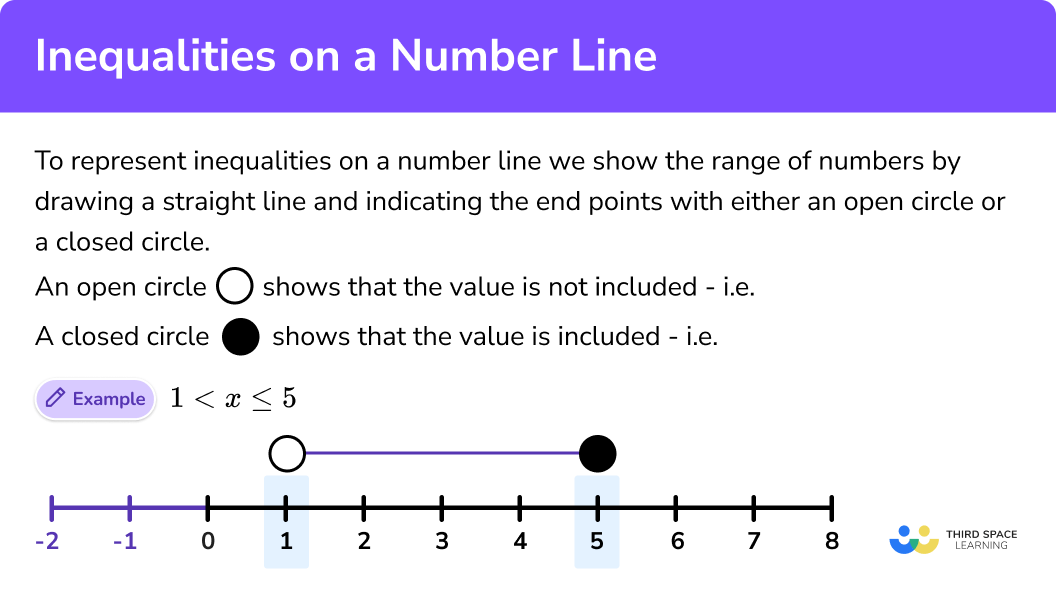

What are inequalities on a number line?

Inequalities on a number line allow us to visualise the values that are represented by an inequality.

To represent inequalities on a number line we show the range of numbers by drawing a straight line and indicating the end points with either an open circle or a closed circle.

An open circle shows it does not include the value.

A closed circle shows it does include the value.

E.g.

inequalities on a number line image 1 1

The solution set of these numbers are all the real numbers between 1 1 and 5 5 .

As 1 1 has an open circle, it does not include β€˜1 1 ’ but does include anything higher, up to and including 5 5 as this end point is indicated with a closed circle.

We can represent this using the inequality 1<x≀5 1 < x \leq5

We can also state the integer values (whole numbers) represented by an inequality.
In this example, the integers 2,3,4 2, 3, 4 and 5 5 are all greater than 1 1 but less than or equal to 5 5 .

The solution set can represent all the real numbers shown within the range and these values can also be negative numbers.

What are inequalities on a number line?

What are inequalities on a number line?

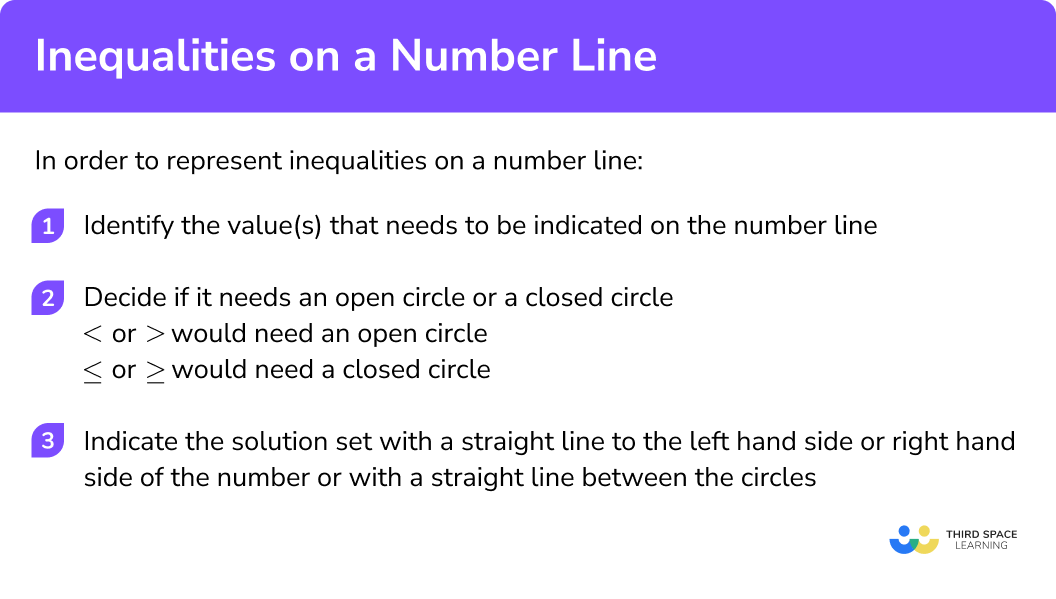

How to represent inequalities on a number line

In order to represent inequalities on a number line:

  1. Identify the value(s) that needs to be indicated on the number line.
  2. Decide if it needs an open circle or a closed circle;
    < or > would need an open circle
    ≀ \leq or β‰₯ \geq would need a closed circle.
  3. Indicate the solution set with a straight line to the left hand side or right hand side of the number or with a straight line between the circles.

E.g.

Represent x<3 x < 3 on a number line

An open circle needs to be indicated at β€˜3 3 ’ on the number line.

inequalities on a number line image 2 1

As x<3 x < 3 is β€˜x x is less than 3 3 ’, the values to the left hand side of the circle need to be indicated with a line.

inequalities on a number line image 3 1

E.g.

Represent 2<x≀6 2<{x}\leq{6} on a number line.

An open circle needs to be indicated above β€˜2 2 ’ and a closed circle needs to be indicated above β€˜6 6 ’.

inequalities on a number line image 4 1

Then draw a line between the circles to indicate any value between these circles.

inequalities on a number line image 5 1

Explain how to represent inequalities on a number line

Explain how to represent inequalities on a number line

Inequalities on a number line worksheet

Inequalities on a number line worksheet

Inequalities on a number line worksheet

Get your free Inequalities on a number line worksheet of 20+ questions and answers. Includes reasoning and applied questions.

DOWNLOAD FREE
x
Inequalities on a number line worksheet

Inequalities on a number line worksheet

Inequalities on a number line worksheet

Get your free Inequalities on a number line worksheet of 20+ questions and answers. Includes reasoning and applied questions.

DOWNLOAD FREE

Related lessons on inequalities

Inequalities on a number line is part of our series of lessons to support revision on inequalities. You may find it helpful to start with the main inequalities lesson for a summary of what to expect, or use the step by step guides below for further detail on individual topics. Other lessons in this series include:

Inequalities on a number line examples

Example 1: single values

Represent x>3 x > 3 on a number line.

  1. Identify the value that needs to be on the number line.

In this example it is 3 3 .

2Decide if this needs to be indicated with an open circle or a closed circle.

As the symbol is > then it will be an open circle.

inequalities on a number line example 1 step 2 1

3Decide if the straight line needs to be drawn to the right or the left of the circle.

As x x is greater than 3 3 the straight line needs to be drawn to the right hand side of the circle to show the solution set of values greater than 3 3 .

inequalities on a number line example 1 step 3 1

Example 2: single values

Represent βˆ’2β‰₯x βˆ’2\geq{x} on a number line.

Identify the value that needs to be on the number line.

Show step

Decide if this needs to be indicated with an open circle or a closed circle.

Show step

Decide if the straight line needs to be drawn to the right or the left of the circle.

Show step

Example 3: values within a range

Represent 2≀x≀7 2\leq{x}\leq{7} on a number line.

Identify the values that need to be indicated on the number line.

Show step

Decide if they need to be indicated with open circles or closed circles.

Show step

Draw a straight line between the circles to represent the solution set.

Show step

Example 4: values within a range

Represent βˆ’2<x≀3 βˆ’2<{x}\leq{3} on a number line.

Identify the values that need to be indicated on the number line.

Show step

Decide if they need to be indicated with open circles or closed circles.

Show step

Draw a straight line between the circles to represent the solution set.

Show step

Example 5: writing an inequality from a number line

Write the inequality that is shown on this number line.

inequalities on a number line example 5 1

Identify the value indicated.

Show step

Decide which inequality symbol to use.

Show step

Example 6: writing an inequality from a number line

Write the inequality that is shown on this number line:

inequalities on a number line example 6 1

Identify the values indicated on the number line.

Show step

Decide which inequality symbol to use.

Show step

Put the inequalities together.

Show step

Example 7: listing integer values in a solution set

List the integer values satisfied by the inequality βˆ’4≀x<2 -4\leq{x}<2

Identify the values indicated on the number line.

Show step

List the integer values.

Show step

Example 8: listing integer values in a solution set from a number line

List the integer values satisfied by the inequality shown on the number line below.

inequalities on a number line example 8 1

Identify the values indicated on the number line.

Show step

 List the integer values.

Show step

Common misconceptions

  • Incorrect identification inequality symbols

A common error is to confuse open circles and closed circles:

Open circles do not include the value so require a β€˜<’ sign.
Closed circles do include the value so require a β€˜β‰€β€² β€˜\leq'

  • Incorrect ordering of negative numbers

A common error is to not recognise the symmetry about β€˜0’ β€˜0’ on the number line, and therefore not comparing the size of negative numbers correctly.

E.g.
5 5 is greater than one as they are ordered 1 1 , 2,3,4, 2, 3, 4, 5 5 on a number line.

But βˆ’5 βˆ’5 is less than βˆ’1 βˆ’1 as they are ordered βˆ’5 βˆ’5 , βˆ’4,βˆ’3,βˆ’2, βˆ’4, βˆ’3, βˆ’2, βˆ’1 βˆ’1 , 0,1,2,3 0, 1, 2, 3 on a number line.

  • Incorrect interpretation of the inequality symbol

The direction of the inequality sign shows if the solution set is β€˜greater than’ or β€˜less than’. This can be confused when both sides of the inequality are switched. For example x>8 x > 8 is the same as 8<x 8 < x and β€˜x’ β€˜x’ is greater than 8 8 as the inequality sign is open towards the β€˜x’ β€˜x’ .

  • Not listing all of the possible values in a solution set

Usually integer values are requested to be listed in a solution set. β€˜0’ β€˜0’ can sometimes be forgotten.

  • Not considering real numbers

In the inequality βˆ’2≀x<4 -2\leq{x}<4 , the highest integer value that satisfies the inequality is β€˜3’ β€˜3’ .  However, real numbers larger than 3 3 but less than 4 4 are also satisfied by this inequality.

Practice inequalities on a number line questions

1. Show x>5 x > 5 on the number line

practice inequalities on a number line question 1 1

practice inequalities on a number line question1 2 1

GCSE Quiz True

practice inequalities on a number line question 1 3 1

GCSE Quiz False

practice inequalities on a number line question 1 4 1

GCSE Quiz False

practice inequalities on a number line question 1 5 1

GCSE Quiz False

5 5 is not included in the solution set as it is β€˜>’ so an open circle is needed. The inequality sign is open towards the β€˜x’ β€˜x’ indicating it has values greater than 5 5 so the line is drawn to the right hand side of the circle.

2. Show x≀7 x\leq{7} on the number line

practice inequalities on a number line question 2 1

practice inequalities on a number line question 2 3 1

GCSE Quiz False

practice inequalities on a number line question 2 2 1

GCSE Quiz True

practice inequalities on a number line question 2 4 1

GCSE Quiz False

practice inequalities on a number line question 2 5 1

GCSE Quiz False

7 7 is included in the solution set as it is β€˜β‰€β€™ β€˜\leq’ so a closed circle is needed. The inequality sign is closed towards the β€˜x’ β€˜x’ indicating it has values less than 7 7 so the line is drawn to the left hand side of the circle.

3. Show 1<x≀8 1<x\leq{8} on the number line

practice inequalities on a number line question 3 1

practice inequalities on a number line question 3 3 1

GCSE Quiz False

practice inequalities on a number line question 3 4 1

GCSE Quiz False

practice inequalities on a number line question 3 5 1

GCSE Quiz False

practice inequalities on a number line question 3 2 1

GCSE Quiz True

1 1 is not included in the solution set as it is β€˜<’ so an open circle is needed. 8 8 is included in the solution set as it is  β€˜β‰€ \leq β€˜  so a closed circle is needed. A line is drawn between the circles to indicate that all values in between are in the solution set.

4. Show βˆ’3<x<4 -3 < x < 4 on the number line

practice inequalities on a number line question 4 1

practice inequalities on a number line question 4 2 1

GCSE Quiz True

practice inequalities on a number line question 4 3 1

GCSE Quiz False

practice inequalities on a number line question 4 4 1

GCSE Quiz False

practice inequalities on a number line question 4 5 1

GCSE Quiz False

βˆ’3 -3 and 4 4 are not included in the solution set as both signs are β€˜<’ so open circles are needed. A line is drawn between the circles to indicate that all values in between are in the solution set.

5. Write down the inequality for x x that is shown on this number line

practice inequalities on a number line question 5 1

x≀6 x \leq 6
GCSE Quiz True

x<6 x < 6
GCSE Quiz False

x>6 x > 6
GCSE Quiz False

xβ‰₯6 x \geq 6
GCSE Quiz False

6 6 is indicated with a closed circle so this value is included in the solution set. The arrow is drawn to the left hand side to indicate values less than 6 6 .

6. Write down the inequality for x x that is shown on this number line.

practice inequalities on a number line question 6 1

βˆ’4<x<2 -4 < x < 2
GCSE Quiz False

βˆ’4<x≀2 -4<{x}\leq{2}
GCSE Quiz True

βˆ’4≀x≀2 -4\leq{x}\leq{2}
GCSE Quiz False

βˆ’4≀x<2 -4\leq{x}<2
GCSE Quiz False

βˆ’4 -4 is indicated by an open circle so this value is not included in the solution set therefore requires a β€˜<’ symbol. 2 2 is indicated by a closed circle so this value is included in the solution set therefore requires a β€˜β‰€β€™ β€˜\leq’ symbol. A line between the circles indicates all values in between are in the solution set.

7. List the integer values satisfied by the inequality βˆ’3<x≀4 -3<{x}\leq{4}

βˆ’3,βˆ’2,βˆ’1,0,1,2,3,4 -3, -2, -1, 0, 1, 2, 3, 4
GCSE Quiz False

βˆ’2,βˆ’1,0,1,2,3 -2, -1, 0, 1, 2, 3
GCSE Quiz False

βˆ’3,βˆ’2,βˆ’1,0,1,2,3 -3, -2, -1, 0, 1, 2, 3
GCSE Quiz False

βˆ’2,βˆ’1,0,1,2,3,4 -2, -1, 0, 1, 2, 3, 4
GCSE Quiz True

β€˜<’ follows βˆ’3 -3 which means this value is not included in the solution set. β€˜β‰€β€™ β€˜\leq’ is before 4 4 which means this value is included in the solution set. All the integers greater than βˆ’3 -3 and up to and including 4 4 are in the solution set.

8. List the integer values satisfied by the inequality βˆ’5<x<1 -5 < x < 1

βˆ’4,βˆ’3,βˆ’2,βˆ’1,0,1 -4, -3, -2, -1, 0, 1
GCSE Quiz False

βˆ’5,4,βˆ’3,βˆ’2,βˆ’1,0,1 -5, 4, -3, -2, -1, 0, 1
GCSE Quiz False

βˆ’4,βˆ’3,βˆ’2,βˆ’1,0 -4, -3, -2, -1, 0
GCSE Quiz True

βˆ’5,4,βˆ’3,βˆ’2,βˆ’1,0 -5, 4, -3, -2, -1, 0
GCSE Quiz False

Both inequality signs are β€˜<’ which means these values are not included in the solution set. All the integers greater than βˆ’4 -4 and less than βˆ’1 -1 are in the solution set.

9. List the integer values satisfied by the inequality shown on the number line below.

practice inequalities on a number line question 9 1

βˆ’1,0,1,2,3,4 -1, 0, 1, 2, 3, 4
GCSE Quiz False

0,1,2,3 0, 1, 2, 3
GCSE Quiz False

0,1,2,3,4 0, 1, 2, 3, 4
GCSE Quiz False

βˆ’1,0,1,2,3 -1, 0, 1, 2, 3
GCSE Quiz True

βˆ’1 -1 is indicated with a closed circle so this value is included in the solution set. 4 4 is indicated with an open circle so this value is not included in the solution set. All of the integers greater than and including βˆ’1 -1 and up to 4 4 are included in the solution set.

10. List the integer values satisfied by the inequality shown on the number line below.

practice inequalities on a number line question 9 2

βˆ’1,0,1,2 -1, 0, 1, 2
GCSE Quiz True

1,0,1 1, 0, 1
GCSE Quiz False

0,1,2 0, 1, 2
GCSE Quiz False

0,1 0, 1
GCSE Quiz False

Both βˆ’1 -1 and 2 2 are indicated with closed circles so these values are included in the solution set. All of the integers greater than and including βˆ’1 -1 and up to and including 2 2 are included in the solution set.

Inequalities on a number line GCSE questions

1. John buys x x bananas and y y pears.

He buys

  • At least 5 5 bananas
  • At most most 9 9 pears
  • He buys more pears than bananas

One of the inequalities for this information is xβ‰₯5 x\geq5

Write down two more inequalities for this information



(2 marks)

Show answer

y≀9 y\leq9

(1)

y>x y>x

(1)

2.

(a) Show the inequality x>4 x > 4 on this number line.

inequalities on a number line gcse question 2a 1

(b) Write down the inequality for x x that is shown on this number line
inequalities on a number line gcse question 2b 1



(3 marks)

Show answer

(a)

Open circle at 4 4

(1)

Arrow indicating values greater than 4 4

inequalities on a number line gcse question 2b 1

(1)

(b)

x≀7 x\leq7

(1)

3.

(a) Write down an inequality for x x that is shown on this number line

inequalities on a number line gcse question 3b 2 1
(b)

(i) Show the inequality βˆ’3≀x<2 -3\leq{x}<2 on this number line.
inequalities on a number line gcse question 3b 1
(ii) List the integers that are included in the solution set



(6 marks)

Show answer

(a)

2<x 2 < x or x≀7 x\leq 7

(1)

2<x≀7 2 < x \leq 7

(1)

(b)

Closed circle at βˆ’3 -3 or for open circle at 2 2

(1)

inequalities on a number line gcse question 3b 2 1

(1)



βˆ’2,βˆ’1, -2, -1, 00,1 1

(1)



βˆ’3,βˆ’2,βˆ’1,0,1 -3, -2, -1, 0, 1

(1)

Learning checklist

You have now learned how to:

  • Identify inequalities from a number line
  • Show inequalities on a number line
  • List integer values in the solution set

Still stuck?

Prepare your KS4 students for maths GCSEs success with Third Space Learning. Weekly online one to one GCSE maths revision lessons delivered by expert maths tutors.

GCSE Benefits

Find out more about our GCSE maths tuition programme.
